Product introduction
Low voltage lithium batteries operate at lower voltages. They use specific materials and designs for low voltage operation. These batteries have unique features and advantages. They often have higher safety due to reduced risk of overheating and overcharging. They are suitable for specialized electronic devices and applications, such as portable medical devices, small sensor networks, and special industries.
Product advantages
High-Efficiency Capacity Design
The Low Voltage Lithium Battery boasts a nominal voltage of 48V and a rated capacity of 9600Wh, with an actual usable capacity reaching 8640Wh. This design not only ensures ample energy reserve for the battery pack but also optimizes energy output efficiency, allowing devices to maintain robust power even during extended operations.
Precise Voltage Management
The Low Voltage Lithium Battery maintains a stable discharge voltage of 43.5V and a safe charging voltage within the range of 52.5V. This precise voltage management strategy effectively prevents overcharging and over-discharging, thereby extending the battery's lifespan. Meanwhile, the recommended charge/discharge current is 100A, with a maximum support of 200A (3S configuration), meeting high-performance demands while ensuring the battery operates within safe thresholds, avoiding damage caused by excessive current.
Intelligent Communication Interfaces
Integrated with RS485, CAN, and Bluetooth communication protocols, the Low Voltage Lithium Battery can easily connect to various intelligent monitoring platforms, enabling remote status monitoring, fault diagnosis, and early warning notifications. This feature significantly enhances operational efficiency and reduces maintenance costs.
Adaptability to Various Environments
With an operating temperature range of 0-40°C and a storage temperature range as wide as -20-70°C, coupled with a humidity tolerance of 10%-80%, the Low Voltage Lithium Battery can operate stably in various extreme environments, demonstrating exceptional adaptability in both cold outdoor operations and hot data center settings.
Extended Design Lifespan
The Low Voltage Lithium Battery boasts a design lifespan exceeding 10 years and a cycle life of over 6000 cycles (at 90% depth of discharge, 25±5°C). This means that under the same usage conditions, our battery provides a longer service period, reducing the frequency of replacements. Additionally, the high cycle life reflects the high quality of the battery's internal materials and optimized structural design, ensuring stability and reliability during long-term use.
Parameters of lithium ion 48 volt battery
|
Basic Parameters |
Numerical |
|
Nominal Voltage (V) |
48 |
|
Nominal Capacity (WH) |
9600 |
|
Usable Capacity (WH) |
8640 |
|
Discharge Voltage (V) |
43.5 |
|
Charge Voltage (V) |
52.5 |
|
Recommend Charge/ Discharge Current (A) |
100 |
|
Max. Charge/ Discharge Current(A) |
200(3S) |
|
Communication |
RS485/CAN/Bluetooth |
|
Working Temperature |
0-40℃ |
|
Storage Temperature |
-20-70℃ |
|
Humidity |
10%-80% |
|
Certification |
CE/ IEC/ UN38.3/ MSDS |
|
Design Life |
10 years+ |
|
Cycle Life |
>6000@90%DOD(25±5℃) |
Equipment Interface Instruction

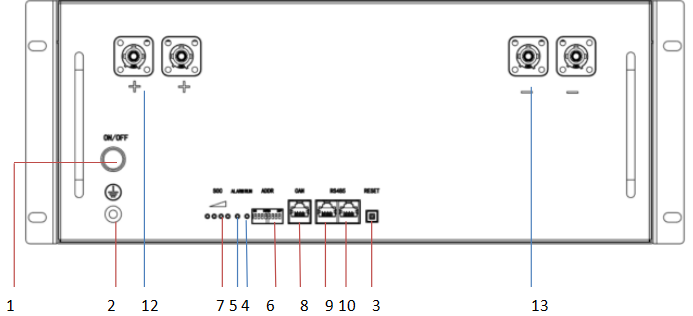

This section details the front and back interface functions of the lithium battery Product Front Interface：
|
Item |
Name |
Definition |
|
1 |
Power switch |
ON/OFF,must be in the "ON" state when in use |
|
2 |
Ground |
Grounding connection |
|
3 |
RESET |
Keep pressing for more than 3 seconds, the battery will be restarted |
|
4 |
RUN |
Green light flashing during standby and charging mode. Green light always on when discharging. |
|
5 |
ALM |
Red light flashing when an alarm occurs, red light always on during protection status. After the condition of trigger protection is relieved, it can be automatically closed |
|
6 |
ADD |
DIP switch |
|
7 |
SOC |
The number of green lights shows the remaining power. |
|
8 |
CAN |
Communication cascade port, support CAN |
|
9/10 |
RS485 |
Communication cascade port, support RS485 |
|
12 |
Positive socket |
Battery output positive or parallel positive line |
|
13 |
Negative socket |
Battery output negative or parallel negative line |
Application of lithium iron phosphate solar battery
Inverters
Lithium Iron Phosphate batteries provide reliable energy storage for inverters, ensuring consistent power supply for various applications.
Solar Panels
These batteries store excess energy generated by solar panels, allowing for efficient use of solar power during the night or cloudy days.
Various Loads
Suitable for powering a range of loads, from small devices to larger appliances, ensuring versatility in energy supply.
Yard Lights
Power outdoor yard lights with 50W or 100W ratings, providing illumination and enhancing safety in outdoor spaces.
Kitchen Appliances
Efficiently run kitchen appliances like microwaves, coffee machines, and refrigerators, supporting daily household activities.
Water Heaters and Ovens
Provide energy for water heaters and ovens with ratings from 800W to 2000W, ensuring reliable performance for cooking and heating needs.
Package and shipment of lithium-ion home battery
Package: 1 set per carton or wood case
Shipping: Shipped by sea or by railway
